Rx1 DIN/DATA enables to transmit any character string by means of serial port RS 232 when button (buttons) of the transmitter is pressed. Up to four different character strings can be assigned to one button of the transmitter (max. lenght is 42 characters). Commands in one sequence are transmitted one after another (sequencing is determined

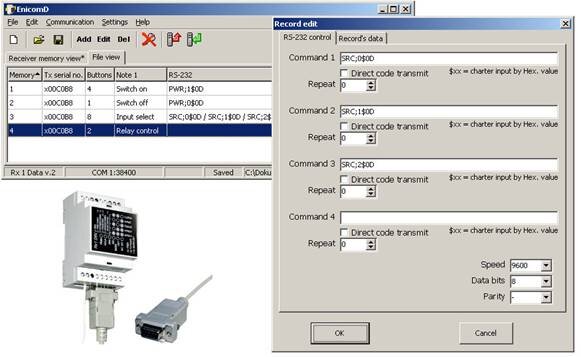

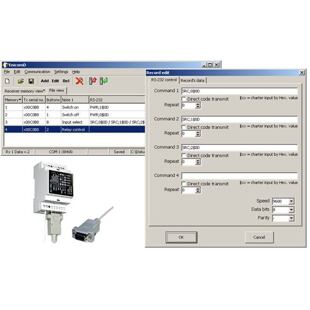

by the position in receiver‘s memory) with break of 500 ms – each command can be transmitted with different speed within the range 600 – 115200 bands with optional amount of data bits per character (7 or 8) and parity (odd, even or non). Character strings are changed cyclically with every new press of the button. Software EnicomD is designed for right confi guration of transmitted strings (assigns exact character string to particular button of the transmitter and set up all parameters of character string transmition). In addition, the Rx1 DIN DATA is equipped with a power contact of the relay. If necessary, it can also cooperate with Rn1 DIN slave modules.
